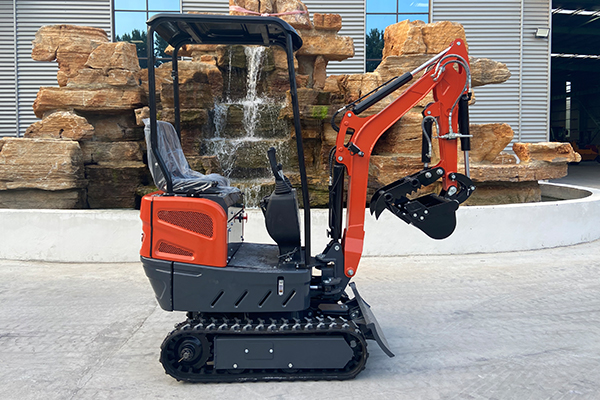

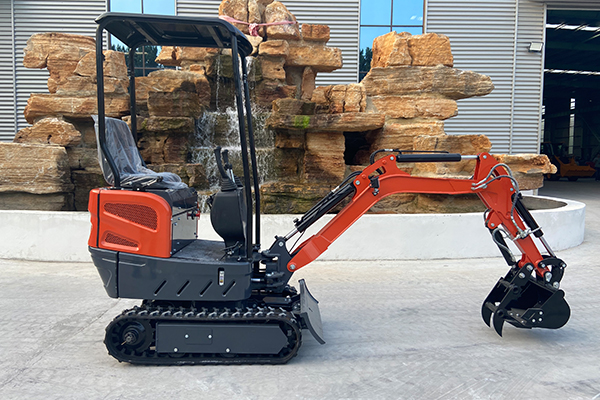

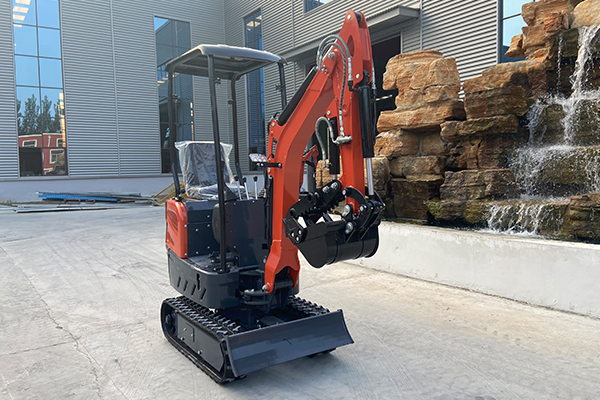

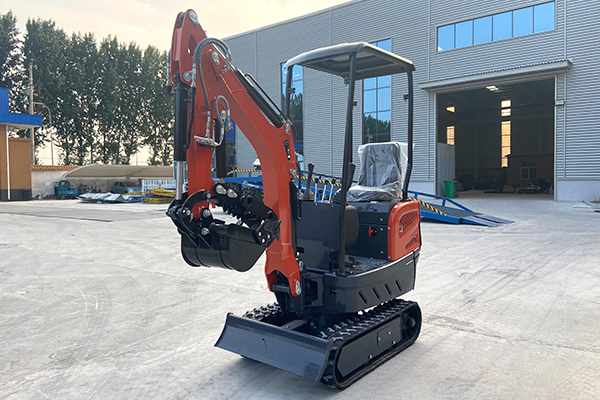

Engineered for ultra-tight access projects, the IN-12 leverages 20Mpa hydraulic supremacy and 52-inch swing radius to redefine micro-excavation. Revolutionize utility service corridors and historic district renovations.
Advantages:
1.Historic-District Access Mastery
52-inch swing radius clears narrow alleyways – operates within 28 inches of fragile structures.
2.Hydraulic Pressure Dominance
20Mpa industry-record pressure enables sub-millimeter trench control – 40% less restoration costs on brick pavements.
3.Micro-Footprint Stability
33.5-inch fixed chassis stance anchors securely on uneven surfaces – zero surface damage on finished landscapes.
4.Hyper-Efficient Fuel Economy
5L tank sustains 6-hour precision tasks – complete daily neighborhood jobs without refueling.
5.Instantaneous Power Response
8KN digging force with 18L/min flow achieves rapid cycle times – install sprinkler systems 3x faster than manual labor.
Main parameters
| Model | IN-12 |
| Rated power | 7Kw |
| Fuel tank capacity | 5L |
| Maximum gradeability | 35° |
| Bucket capacity | 0.016m³ |
| Chassis telescopic range | 850mm |
| Maximum digging force | 8KN |
| Hydraulic flow | 18L/min |
| Work pressure | 20Mpa |
| Swing radius | 1320mm |
Tired of slow, ill-fitting gear for your small digging projects? Contact us now to grab the IN-12’s best price—we’ll even share quick project-fit tips!
